Product Description
Product Introduction:

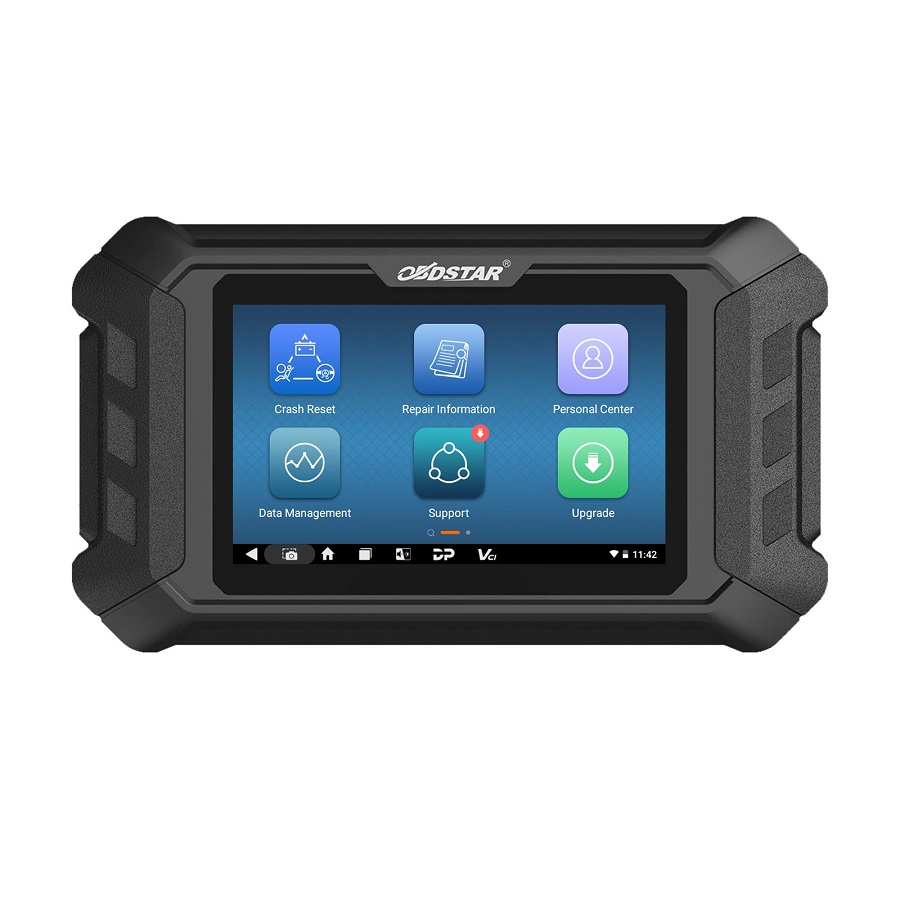

P50 is the new generation of intelligent airbag reset equipment. It's with powerful function and wide coverage, covering 86 brands and 11600+ ECU part No., some MCU.
P50 is based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 5-inch capacitive touch screen, touch sensitive.
P004 Highlights:
P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS Protocol at the same time;
4. Optional CANFD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. DB15 connector can communicate with any OBDII-16 I/O interface.
Product Functions：
1. supports one-click airbag reset for 86 brands and 11600+ ECU part No.
2. supports fuzzy search for ECU part No.
3. contains clear BENCH mode wiring diagram
4. contains powerful and complete description files for fault code

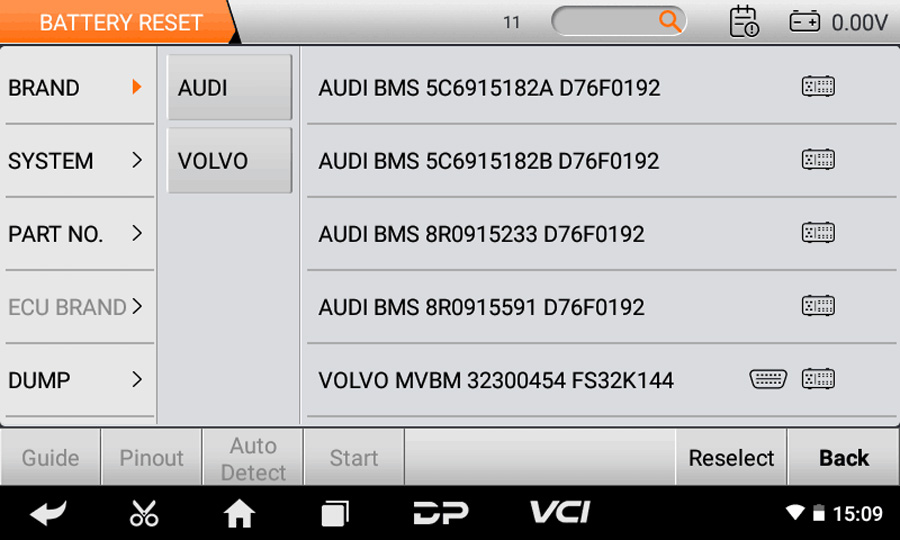

5. supports battery reset(MVBM) function
6. supports SAS reset function
More functions are in developing...
Advanced Functions:
ECU Info.
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH

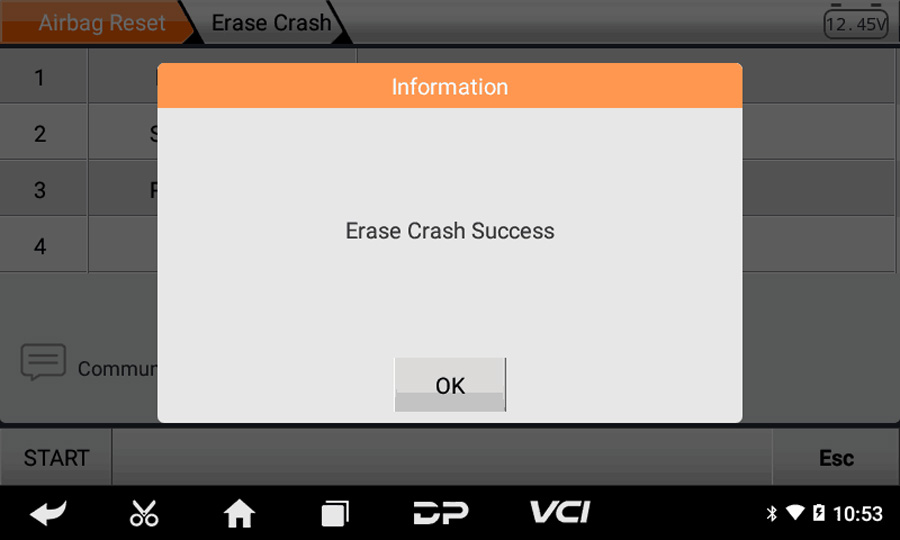

Erase Crash
Write VIN
...
Supported Language: English only.
Vehicle Coverage：
1. Supported Brands(86 Brands)
ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAIC, BAOJUN, BENTLEY, BENZ, BMW, BRILLIANCE, BUICK, CADILLAC, CHANGAN, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DATSUN, DODGE, FAW, FERRARI, FIAT, FORD, GEELY, GMC, GREATWALL, HAIMA, HONDA, HONGQI, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, POLESTAR, PORSCHE, RENAULT, ROEWE, SCION, SEAT, SKODA, SMART, SSANGYONG, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE......
2. Over 11600+ ECU part No.(supporting fuzzy search)
3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...
Product Specifications:
| Operation system |
Android 5.1.1 |
| CPU |
RK3128 quad-core ARM cortex A7 |
| Battery |
2600mA, rechargeable polymer lithium battery |
| Extension memory card |
32G micro SD (TF) card supported |
| Storage capacity |
16GB |
| LCD |
5.0 inch |
| LCD resolution |
800*480 |
| Touch screen |
Capacitive touch screen |
| Wifi |
Supported |
| Working temperature |
-20℃ ~ 55℃(14℉ ~ 131℉) |
| Storage temperature |
-20℃ ~ 70℃(-4℉ ~ 158℉) |
| Weight |
About 700g |
| Dimension |
198mm*115*mm*31mm |
Function Display:
1. The main page after registration：
2. Brands Supported:

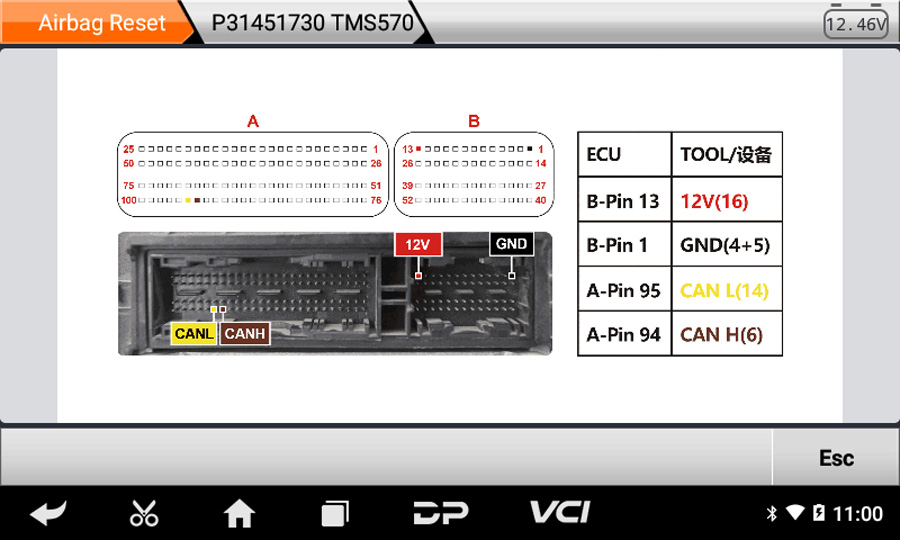

3. Demo（VOLVO TMS570）
Package Includes:
1pc x P50 main unit
1pc x main cable
1pc x P004 adapter
1pc x P004 jumper
1pc x 12V2A charger
